2014 F-150 Adjustable 0″-3″ Suspension

Updated Dec 11, 2014

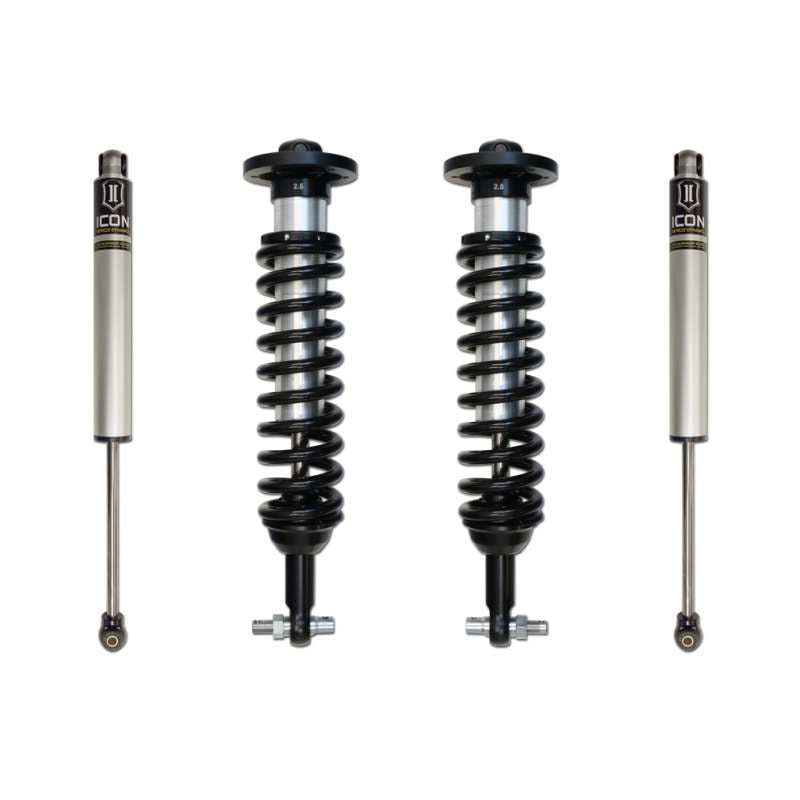

2014_f150_front_threequarterICON Adjustable 2014 F-150 Suspension Kit

ICON Vehicle Dynamics F-150 Stage 1 suspension system gives owners of 2014 F-150s the ability to raise their truck up to 3″, allowing the use of 33×11.50 tires.

ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

To that end, the Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel.

These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations.

ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.

ICON Stage 1 2014 F-150 suspension kit allows adjustability from 0″-3″. Bolt-on. Made in the U.S.A.ICON Stage 1 2014 F-150 suspension kit allows adjustability from 0″-3″. Bolt-on. Made in the U.S.A.

Key Features:

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers from 0-3″ of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8 shaft
  • High strength alloy CNC machined lower bar pin
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.0 aluminum body rear IFP shock with 5/8″ polished nitro steel shaft
  • 100% Bolt-on system – no drilling, cutting, or welding necessary for install
  • Made in the USA

CONTACT: Icon Vehicle Dynamics; 951.689.4266
