Road Test: 2015 Chevy 2500HD Bi-Fuel CNG

Updated Jun 8, 2014

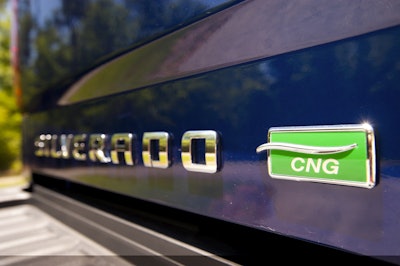

CNG badge Chevy_BS28836
Silverado CNG tailgate badge

Road Test: 2015 Chevy Silverado 2500HD Bi-Fuel CNG

Wringing Out Chevy’s Heavy Duty CNG Bi-Fuel 4×4 Work Truck

HWT Senior Editor Bruce Smith fueling 2015 Chevy Silverado with CNG.HWT Senior Editor Bruce Smith fueling 2015 Chevy Silverado with CNG.

A whoosh like connecting an air hose to a compressor is the only thing that lets me know I’m in business filling the bed-mounted fuel tank in the 2015 Chevy Silverado CNG I’m driving.

Moments after turning on the pump the digital readout on the dispenser rapidly clicks off the gallons as fuel under 3,600psi streams into the bed-mounted tank.

Other than watching a one-minute orientation video on the Clean Energy Fuels’ filling station pump screen before I get a PIN, and snapping the fuel pump’s round fuel line connector to the male receptacle on the tank, there’s really no drama or mystery to the CNG fueling process.

In what seems to be less than a minute the readout stops at 11.7 GGE (Gasoline Gallon Equivalent).

I tap the CNG switch at the far end of the row of auxiliary switches along the bottom of Silverado’s center console and up pops the CNG fuel gauge’s bar graph on the digital dash display; it’s blue all the way to the full mark. The tank is full.

The toggle switch’s indicator light blinks for a few seconds, then remains on indicating the truck’s bi-fuel system has switched over to CNG and, in doing so, switches to a separate engine control module (ECM).

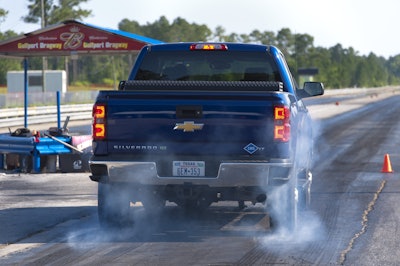

The bi-fuel CNG SIlverado 2500HD 4×4 is almost two seconds slower to 60mph and 5mph slower at the end of the 1/4-mile than running on unleaded E-10.The bi-fuel CNG SIlverado 2500HD 4×4 is almost two seconds slower to 60mph and 5mph slower at the end of the 1/4-mile than running on unleaded E-10.

Good to go.

CNG vs GASOLINE

Using two separate ECMs was the only way the GM engineers could optimize the driving characteristics of the two very different fuels.

The CNG module has different engine and transmission calibrations than the module on the gasoline side: Injector durations and flow, engine timing, transmission shift points and a host of other calibrations have been changed to meet stringent EPA emissions goals.

Driving the 2500HD on CNG is no different than when regular 89-octane E-10 flows through the 6.0L’s injectors: The engine is smooth and the exhaust quiet.

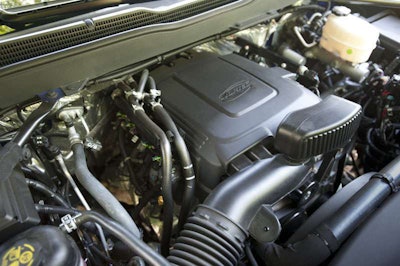

The 360hp 6.0L makes 301hp when switched over to CNG.The 360hp 6.0L makes 301hp when switched over to CNG.

Where I feel the difference between running on gas and CNG is when you really lay the throttle down. That’s when the power difference between the fuels is readily apparent.

The GM 6.0L V8 makes a respectable 360hp on gasoline, but drops 59 of those horses when CNG runs through it.

GM CNG engineer, Mike Jones, says the drop in power is a result of tuning the engine so it meets EPA requirements.

Although the BTU of CNG is closer to that of diesel than E-10 unleaded, Jones says the current engine technology in the way the gaseous fuel is delivered doesn’t take full advantage of that energy.

“When we first began experimenting with CNG engines they made better horsepower and fuel economy than they did running on gas,” notes Jones reflecting back several years. But we have to meet certain emissions criteria and that has an adverse affect on both power and mpg.”

CNG VS GAS MPG

Consequently, when the CNG switch is activated the Silverado takes a 20-percent hit in both horsepower and fuel economy as the trade-off for running an environmentally clean fuel.

I saw 15.1 mpg running the truck on E-16 gasoline on the 108-mile round-trip stretch of relatively flat I-10 I use for testing fuel economy between Gulfport, Mississippi and Pascagoula, Mississippi. The run is at a steady 70mph.

Switching over to CNG the fuel bar and the percentage readout above it showed 45-percent left in the tank at the end of the same round-trip test. That’s the equivalent of 11.6 mpg.

At that rate the range on the 17GGE CNG tank should be almost 200 miles. But that’s not how CNG works.

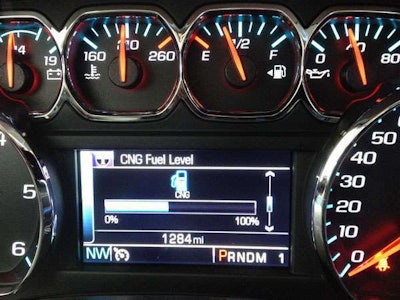

GM uses a bar graph and percentage readout to provide CNG fuel tank data.GM uses a bar graph and percentage readout to provide CNG fuel tank data.

In today’s CNG vehicles the capacity on the tank is not the useable capacity: The useable capacity is about 2/3 of the tank’s rating, or in this instance, 12 GGE with a driving range of about 140 miles.

CNG TANK CAPACITY

That’s because CNG is under tremendous pressure (3,000-3,600psi) and the fuel tank needs to stay at that pressure for the fuel system to work.

As there’s no internal fuel pump, like in a gas tank, when the CNG internal pressure drops below a certain pressure threshold, the system shuts down.

The bed-mounted tank on the Silverado 2500HD has a useable CNG capacity between12-13 GGE — not 17 as indicated on the spec sheets.

So instead of a 200-mile operating range on CNG, it’s really closer to 140-150 miles.

And that range can vary depending on how warm (or cold) it is outside, which affects the pressure inside the fuel tank.

When the CNG ECM shuts the system down the onboard computers truck automatically switche back to gasoline.

The changeover happens seamlessly and the only visual indicators being the light on the CNG switch blinks and the familiar gasoline fuel gauge reappears on the dash.

RIDE, HANDLING & COMFORT

As for the Silverado 2500HD Crew Cab LT is a very comfortable package. The steering overall handling are excellent, the loaded ride stable.

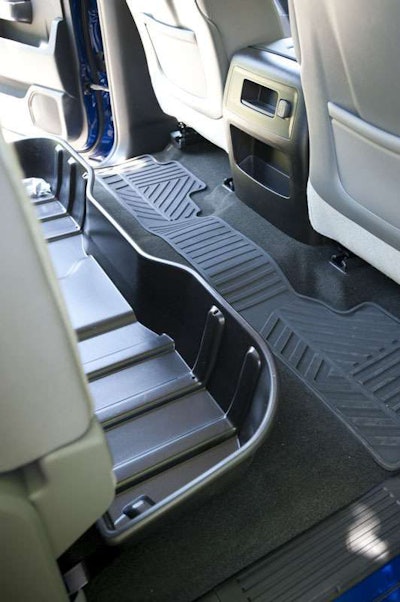

Part of the $435 “Cargo Convenience” option package is this under-seat rear storage compartment.Part of the $435 “Cargo Convenience” option package is this under-seat rear storage compartment.

I noticed a little rear suspension kick unloaded, exaggerated when the LT tires are inflated to their 80psi max-load pressure rating. Drop pressures down to 50psi and the ride is much nicer.

The new truck has the same body as the new model 1500s in that the doors are once-again inset into the sides instead of wrapping up into the roof where they generated a lot of wind turbulence.

Driving the 2015HD at interstate speeds has occupants in a quiet, comfortable cab where conversations and audio quality are not being impacted by road noise. Cudos to GM.

The truck also has excellent brakes, and even rolling on work truck LT tires it was one of the best stopping pickups I’ve tested, netting a 60mph-0 distance of 140 feet.

As for interior highlights, the base LT-trim Silverado 2500HD should never get a complaint.

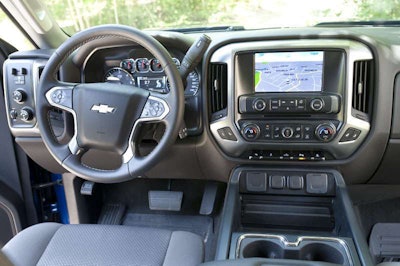

LT’s cloth seats, with the optional MyLiink audio/navi system, makes for a comfortable work truck.LT’s cloth seats, with the optional MyLiink audio/navi system, makes for a comfortable work truck.

The cloth seats are comfortable, storage space is abundant with a full-width storage tray under the split-60/40 rear bench seat, and there’re enough creature comfort amenities to make any work day in the cab pleasant.

With heated power front seats, GM’s MyLink navigation/audio system, and the other upgrades that came in the test truck, it was easy to stay comfortable mile after mile while conducting business over the hands-free Bluetooth link.

CNG ROI

Is the CNG bi-fuel Silverado HD worth it?

The answer to that lies solely on one’s ROI expectations: If CNG is readily available, the GGE price is low enough to offset the loss in fuel economy, and you can afford to put in your own fueling station, then, yes, the cost of the $9,500 CNG package would be a good fleet decision.

But if you are small (1-5 vehicle) fleet owner who has to buy CNG from a retail outlet, then it’s probably not a good option at this time.

BASIC SPECIFICATIONS

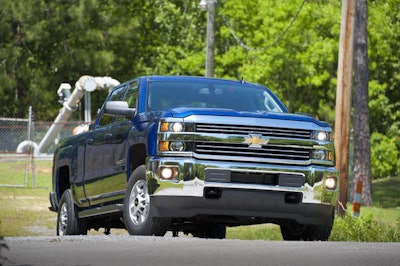

2015 Chevy Silverado 2500HD CC 4×4 Bi-Fuel2015 Chevy Silverado 2500HD CC 4×4 Bi-Fuel
  • MAKE/MODEL: 2015 Chevy Silverado 2500HD 4×4 CC LT
  • BASE PRICE: $42,655
  • PRICE AS TESTED: $58,800
    • Major Options: Bi-fuel CNG ($9,500); Trailering Pkg ($905); LT Convenience Pkg ($1,525); Front Power/Heated Clotth Bucket Seats ($795); 6” Balck Tubeular steps ($700); Chevy MyLink Audio/Nav ($495); Cargo Conveneince Pkg ($435)
  • ENGINE: 6.0L V-8 Bi-Fuel Gas/CNG
  • HORSEPOWER
    • Gas: 360hp/380 lb.-ft
    • CNG: 301hp/333lb.-ft
  • AXLE RATIO: 4.10
  • TRANSMISSION: 6spd Automatic
  • FUEL ECONOMY (Observed):
    • Gas: 12 City/15.1 Hwy
    • CNG: 9.6 City/ 11.6 Hwy
  • FUEL CAPACITY:
    • Gas: 36 gals.
    • CNG: 17 GGE (13 GGE, useable)
  • MAX TOWING: 13,000 lbs.
  • PERFORMANCE



Click image to watch video

*Tests conducted at Gulfport Dragway using Stalker ATS
